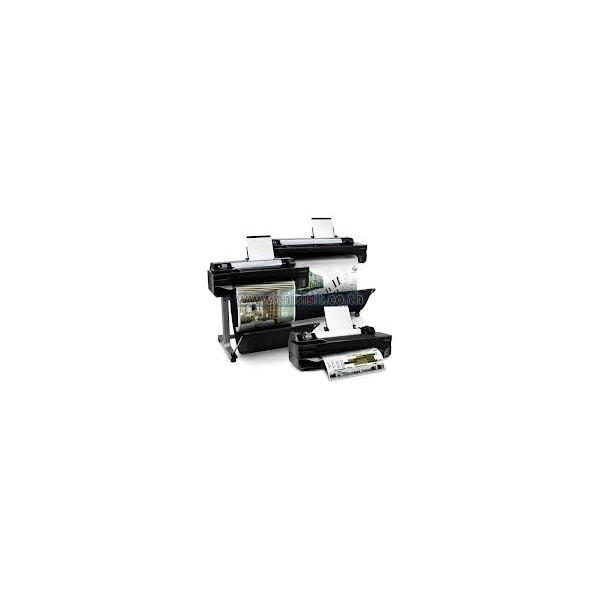

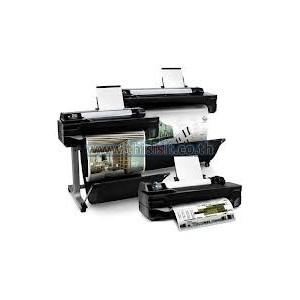

HP Designjet T520 24-in ePrinter CQ890A

Speed specifications

Print time color image ISO N5 (best, metric A1 glossy paper)

16.3 min/page

Print time color image ISO N5 (normal metric A1 glossy paper)

9.3 min/page

Print time color image ISO N5 (draft, A1 coated paper)

1.3 min/page

Print time color image ISO N5 (normal metric A1 coated paper)

4.1 min/page

Print time color line drawing (draft, A1)

35 sec/page

Print speed color line drawing (draft, A1 plain paper)

70 A1 prints per hour

Print speed black line drawing (draft, A1 plain paper)

70 A1 prints per hour

Print speed line drawing (economode, A1 plain paper)

70 A1 prints per hour

Memory specifications

 Memory, standard

• 1 GB

Hard disk

• None

Technical specifications

 Print quality (best)

Color: Up to 2400 x 1200 optimized dpi
Black: Up to 2400 x 1200 optimised dpi from 1200 x 1200 input dpi and optimisation for photo paper selected

Print technology

HP Thermal Inkjet

Number of print cartridges

4 (1 each cyan, magenta, yellow, black)

Compatible ink types

• Dye-based (C, M, Y)
• pigment-based (K)

Non-printable area (cut-sheet)

5 x 17 x 5 x 5 mm

Guaranteed minimum line width

0.07 mm (ISO/IEC 13660:2001(E))

Line accuracy

+/- 0.1%

Maximum optical density (black)

8 L* min/2.10 D
(With HP Premium Instant Dry Photo Gloss media with Original HP inks.)

Paper handling

 Finished output handling

• Sheet feed
• roll feed
• input tray
• media bin
• automatic cutter

Media types

Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)

Media weights, recommended

60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)

Media sizes standard (metric rolls)

• 210 to 610 mm wide sheets
• 279 to 610 mm rolls

Media sizes, custom

• Input tray: 210 x 279 to 330 x 482 mm
• manual feed: 330 x 482 to 610 x 1897 mm
• roll: 279 to 610 mm

Roll maximum output

45.7 m

Roll external diameter

100 mm

Media thickness

Up to 0.3 mm

Dimensions and weight

Dimensions (W x D x H)

987 x 530 x 932 mm

Weight

34 kg

Warranty

1 Year Onsite Service

What's in the box

• HP Designjet T520 610 mm (24-in) ePrinter
• printhead
• spindle
• introductory ink cartridges
• printer stand
• quick reference guide
• setup poster
• startup software
• power cord

Software included

• HP Designjet Utility for Mac and Windows®
• HP Designjet ePrint & Share for Windows®
