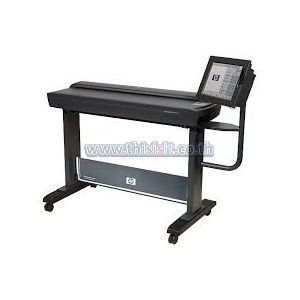

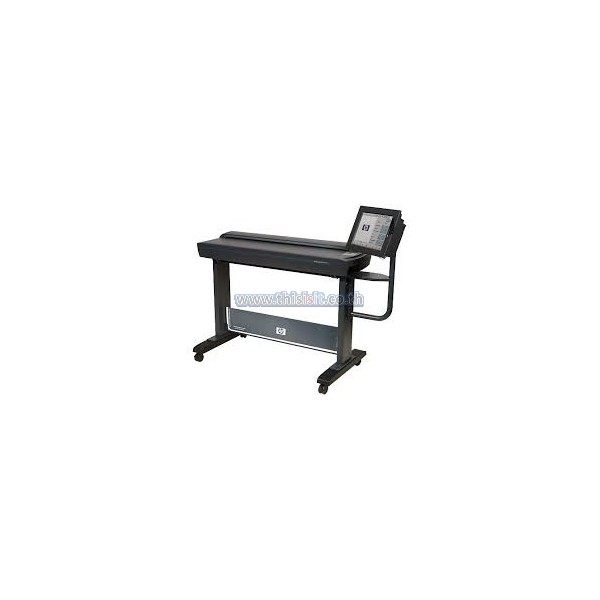

HP Designjet HD Scanner CQ654B

Speed specifications

Linear scan speed

Colour (200 dpi/400 dpi Turbo): up to 8 cm/sec; Black and white (200 dpi/400 dpi Turbo): up to 25 cm/sec

Memory specifications

Memory, standard

• 1 GB

Hard disk

• Standard, 160 GB

Technical specifications

Scan resolution, hardware

Up to 600 x 600 dpi

Scan quality colour (best)

Color: 300 x 300 dpi

Scan resolution, optical

Up to 600 dpi

Scanner type

Sheetfed

Scan size (flatbed), maximum

1067-mm wide

Scan size flatbed (minimum)

152 x 114 mm

Copy reduce / enlarge settings

1 to 10000%

Copies, maximum

Up to 1000 copies

Paper handling

Finished output handling

• Straight-through scan paper path for sheet and cardboard originals

Media types

Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard (No plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)

Dimensions and weight

Minimum dimensions (W x D x H)

1800 x 850 x 1380 mm

Weight

92.5 kg

Warranty

1 Year Onsite Service

What's included

What's in the box

• Scanner
• stand
• touchscreen (panel PC)
• quick reference guide
• setup poster
• documentation software
• system recovery software
• customer service guide
• FireWire cables (x2)
• Ethernet cable
• power cord

Software included

• System recovery software for the scanning system
• including HP Macroinstaller with Windows® drivers for HP Designjet 5x0
• 800
• 1xx0
• 4xx0
• 5x00
• T6x0
• T1xx0
• Zxx00 series products
