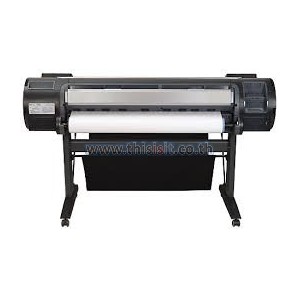

HP Designjet Z5200 44-in Photo Printer CQ113A

Speed specifications

Print time color image ISO N5 (best, metric A1 glossy paper)

5.1 min/page

Print time color image ISO N5 (normal metric A1 glossy paper)

3.4 min/page

Print time color image ISO N5 (draft, A1 coated paper)

1.4 min/page

Print time color image ISO N5 (normal metric A1 coated paper)

2.6 min/page

Print time color line drawing (draft, A1)

42 sec/page

Print speed color line drawing (draft, A1 plain paper)

42 A1 prints per hour

Print speed black line drawing (draft, A1 plain paper)

42 A1 prints per hour

Print speed

41 m²/hr

Memory specifications

Memory, standard

• 32 GB (virtual)

Hard disk

• Standard, 160 GB

Technical specifications

Print quality (best)

Color: Up to 2400 x 1200 optimized dpi
Black: Up to 2400 x 1200 optimized dpi

Print technology

HP Thermal Inkjet

Number of print cartridges

8 (cyan, magenta, yellow, light cyan, light grey, light magenta, matte black, photo black)

Compatible ink types

• Pigment-based

Non-printable area (cut-sheet)

5 mm (top), 5 mm (right), 5 mm (left), 17 mm (bottom)

Guaranteed minimum line width

0.08 mm (ISO/IEC 13660:2001(E))

Line accuracy

+/- 0.2%

Color accuracy

Median < 1.6 dE2000, 95% of colours < 2.8 dE2000

Color stability

< 1 dE2000 in less than 5 minutes

Print repeatability

Average < 0.5 dE2000, 95% of colors < 1.4 dE2000

Maximum optical density (black)

2.5 maximum black optical density (4 L* min) (with HP Premium Instant Dry Photo Gloss media with Original HP inks)

Paper handling

Finished output handling

• Sheet feed
• roll feed
• media bin
• automatic cutter (cuts all media except canvas)

Media types

Photographic, proofing, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit, fabric/textile

Media weights, recommended

500 g/m²

Media sizes standard (metric rolls)

• 210 to 1118-mm wide sheets
• 279 to 1118-mm rolls

Media sizes, custom

• 210 x 279 to 1118 x 1676 mm

Roll maximum output

91 m (application dependent)

Roll external diameter

135 mm

Media thickness

Up to 0.8 mm

Dimensions and weight

Dimensions (W x D x H)

1770 x 690 x 1047 mm

Weight

86 kg

Warranty

3 Years Onsite Service

What's included

What's in the box

• Printer
• printheads
• introductory ink cartridges
• 111.8 cm, (44 in) stand
• 111.8 cm, (44 in) spindle
• Original HP sample media roll
• quick reference guide
• setup poster
• start-up software
• power cord

Software included

• Printer drivers
• HP Instant Printing Pro
• HP Printer Utility including HP Color Center
• HP Designjet Excel Accounting Report
