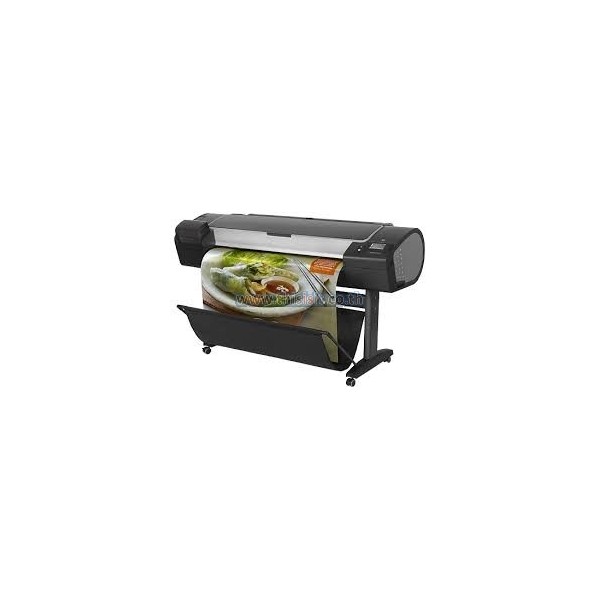

HP Designjet Z5400 Postscript ePrinter E1L21A

Speed specifications

Print speed

53 m²/hr

Memory specifications

Memory, standard

• 64 GB (virtual)

Hard disk

• Standard, 320 GB

Technical specifications

Print quality (best)

Color: Up to 2400 x 1200 optimized dpi

Print technology

HP Thermal Inkjet

Number of print cartridges

6 (cyan, magenta, yellow, light gray, matte black, photo black)

Compatible ink types

• Pigment-based

Non-printable area (cut-sheet)

5 x 17 x 5 x 5 mm

Guaranteed minimum line width

0.08 mm (ISO/IEC 13660:2001(E))

Line accuracy

+/- 0.1%

Color stability

< 1 dE2000 in less than 5 minutes

Print repeatability

Average < 0.5 dE2000, 95% of colors < 1.4 dE2000

Maximum optical density (black)

4 L* min/2.5 D
(With HP Premium Instant Dry Photo Gloss media with HP Photo Inks)

Paper handling

Finished output handling

• Two automatic roll feeds
• smart roll-switching
• sheet feed
• media output bin
• automatic cutter (cuts all media except canvas and banners)

Media types

Photographic, proofing, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit, fabric/textile

Media weights, recommended

60 to 500 g/m²

Media sizes standard (metric rolls)

• 210 to 1118-mm wide sheets
• 279 to 1118-mm rolls

Media sizes, custom

• 210 x 279 to 1118 x 1676 mm

Roll maximum output

91 m (application dependent)

Roll external diameter

135 mm

Media thickness

Up to 19.7 mil

Dimensions and weight

Minimum dimensions (W x D x H)

1770 x 721 x 1050 mm

Weight

86 kg

Warranty

2 Years Onsite Service

What's included

What's in the box

• HP Designjet Z5400 PostScript ePrinter
• printheads
• introductory ink cartridges
• printer stand and media bin
• spindles
• quick reference guide
• setup poster
• start-up software
• power cord

Software included

• Printer driver
• HP Instant Printing PRO for Windows
• HP Printer Utility including HP Color Center
• HP Designjet Excel Accounting Tool
