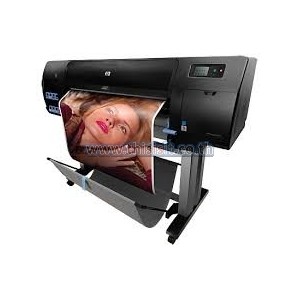

HP Designjet Z6200 42in Printer CQ109A

Speed specifications

Print time color image ISO N5 (best, metric A1 glossy paper)

3.2 min/page

Print time color image ISO N5 (normal metric A1 glossy paper)

2.1 min/page

Print time color image ISO N5 (draft, A1 coated paper)

18 sec/page

Print time color image ISO N5 (normal metric A1 coated paper)

1.5 min/page

Print time color line drawing (draft, A1)

17 sec/page

Print speed

113.6 m²/hr

Memory specifications

Memory, standard

• 32 GB

Hard disk

• Standard, 160 GB

Technical specifications

Print quality (best)

Color: Up to 2400 x 1200 optimized dpi
Black: Up to 2400 x 1200 optimized dpi

Print technology

HP Thermal Inkjet

Number of print cartridges

8 (chromatic red, magenta, matte black, photo black, yellow, light cyan, light gray, light magenta)

Compatible ink types

• Pigment-based

Guaranteed minimum line width

0.067 mm (ISO/IEC 13660:2001(E))

Line accuracy

+/- 0.1%

Color accuracy

Median < 1.19 dE2000, 95% of colors < 2.77 dE2000

Color stability

< 1 dE2000 in less than 5 minutes

Print repeatability

Average < 0.5 dE2000, max < 1 dE2000

Maximum optical density (black)

4.5 L* min/2.31 D (with HP Premium Instant Dry Photo Gloss media with Original HP inks)

Paper handling

Finished output handling

• Roll feed
• automatic cutter
• media bin

Media types

Bond and coated paper, technical paper, film, photographic paper, proofing paper, backlit, self-adhesive, banner and sign, fabric, fine art printing material

Media weights, recommended

Up to 460 g/m² depending on media type

Media sizes standard (metric rolls)

• 280 to 1067-mm rolls

Roll maximum output

175 m

Roll external diameter

170 mm

Media thickness

Up to 22 mil

Dimensions and weight

Minimum dimensions (W x D x H)

1970 x 690 x 1370 mm

Weight

123 kg

Warranty

3 Years Onsite Service

What's included

What's in the box

• HP Designjet Z6200 Photo Printer
• spindle
• printheads
• introductory ink cartridges
• maintenance cartridge
• Original HP media sample roll
• printer stand
• media bin
• 3-in spindle adaptor kit
• quick reference guide
• setup poster
• startup software
• power cord

Software included

• HP Instant Printing
• HP Instant Printing Pro with optional PostScript/PDF upgrade
• HP Utility for Mac and Windows
